Animal Salt Licking Making Machine

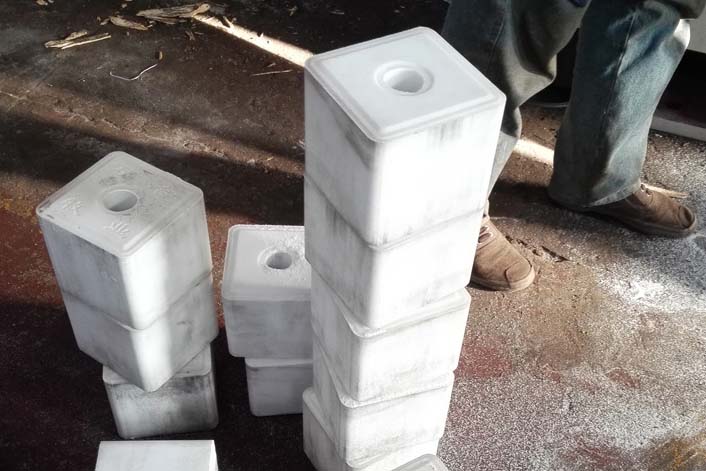

Cattle, sheep and pig licking salt cubes

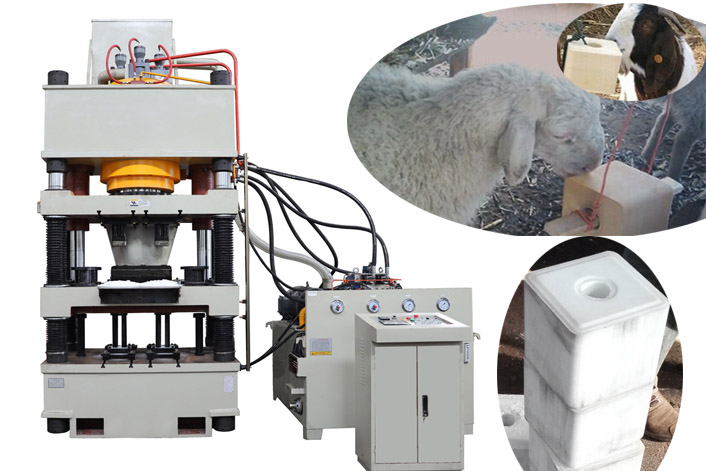

Animal Salt Block Press Machine

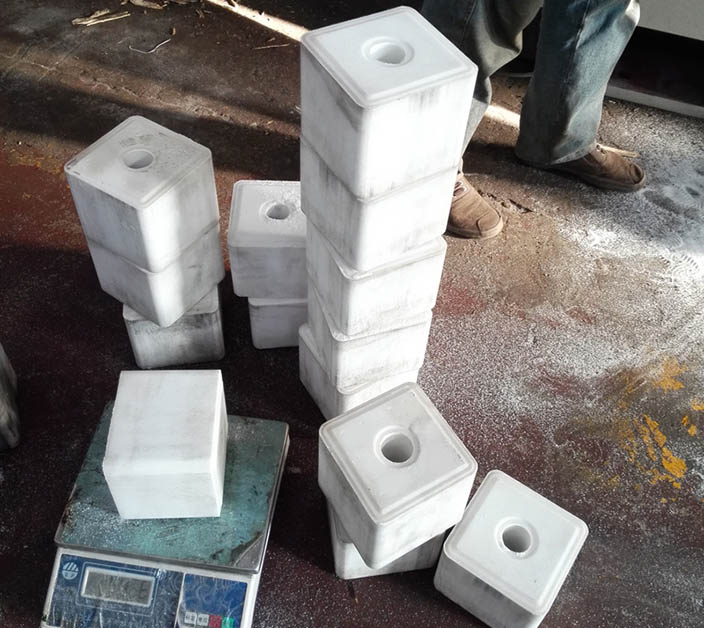

The salt brick machine is a kind of feed with nutrients required by cattle and sheep. The shape of the bricks is different, some are cylindrical, some are square, most of them has a hole is in the middle of the brick to be fixed. Our finished product brick made of high-pressure press are with high density and hardness, which can adapt to a variety of extreme climatic conditions.

Application of Animal Salt Block Press Machine

Animal Salt Block Press Machine is not only applied to herbivore livestock such as cows, beef cattle, sheep, goats, and deer, but also for sawdust of steel, iron, aluminum, brass, tea brick,tablet, metal processing etc.Most customers use it for animal feeding.
The mold shapes are various for optional, like square, round.It can make different logo and colors by customers’ requirements.

Structures of Animal Salt Block Press Machine

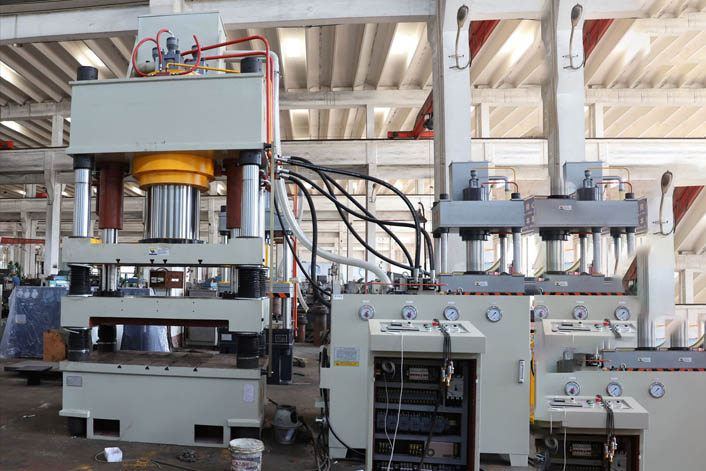

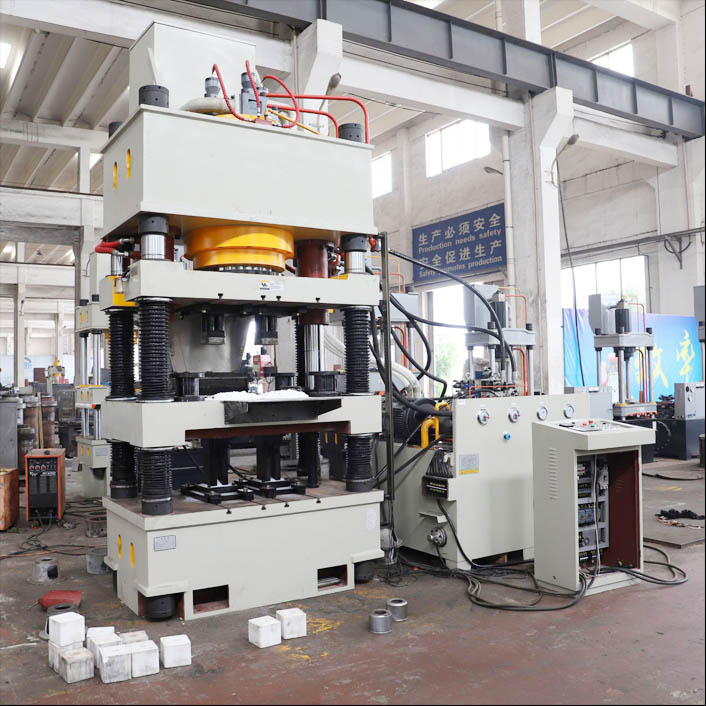

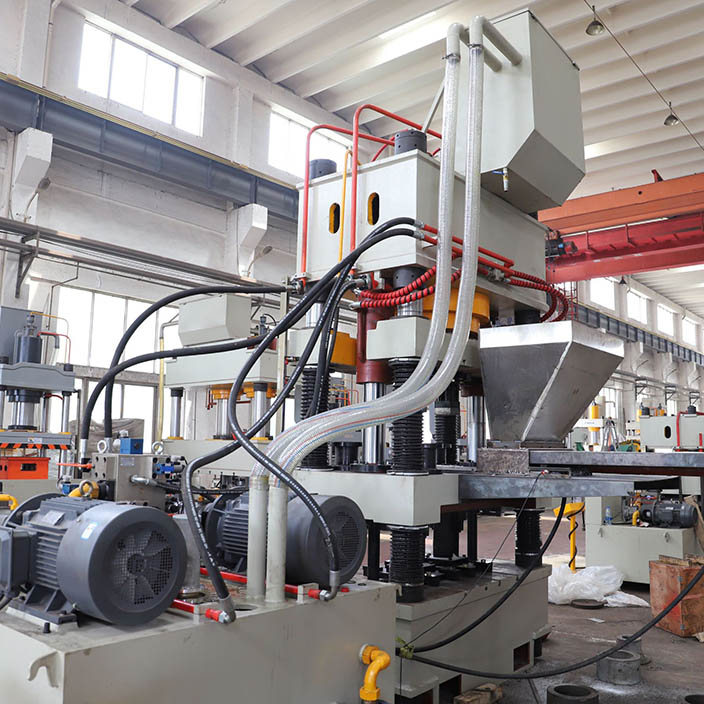

The main machine is composed of upper middle and lower cross beams, hydraulic master cylinder assembly, jacking floating cylinder, core pulling cylinder, feeding cylinder, rear feeding belt, high precision mold base and mold, liquid filling system and so on.

1.The upper middle and lower beams are connected by columns and nuts.

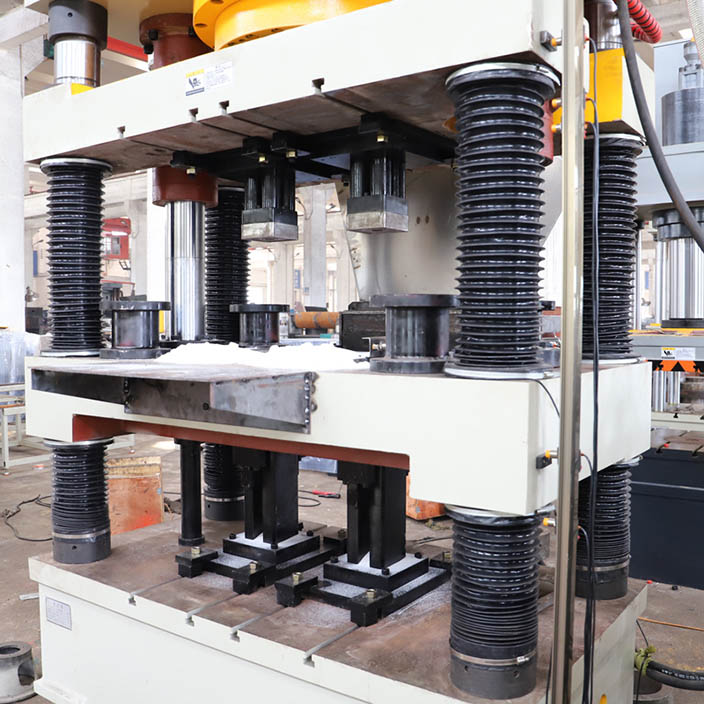

2.The high-precision formwork is mounted on the lower beam. The four guide columns and two guide columns and the jack-up floating cylinder and the lower beam are connected to form a high-precision pressing structure. The mold is fixed on the upper mold base of the high-precision mold base.

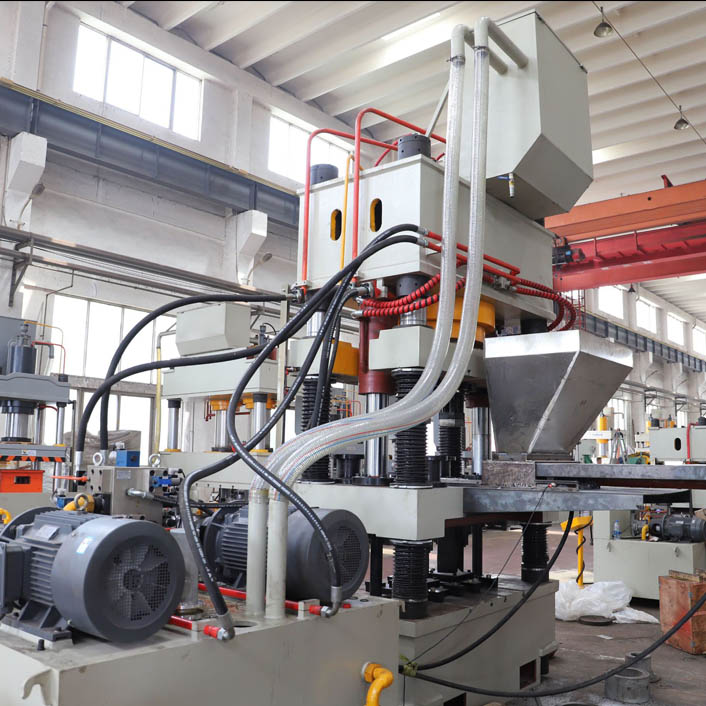

3.The rear feeding belt is fixed behind the upper beam of the equipment, and the material is stored in the hopper above the feeding belt, and is fed by the equipment program timing to the below feeding hopper.

4.The liquid filling system is located on the side of the upper beam to supplement the oil required for the main cylinder.

Parameter

Model		Unit	SL400	SL500	SL720
Nominal Pressure		KN	4000	5000	7200
Maximum working pressure of liquid		Mpa	25	25	25
The maximum distance between the plane under slider and worktable		MM	1200	1200	1200
Slider Stroke Parameter	Press Power	KN	4000	5000	7200
	Return Power	KN	55	55	115
	Stroke	MM	450	500	500
	Floating Press Velocity	MM/S	8	8	8
	Return Speed	MM/S	85	80	70
Power		KW	30	30	45
Block Weight		KG	2-8	5-10	10-20
Working Efficiency		Times/Minute	3	3	2.5

Features

1.Enhance animal health, fur quality,food digestion, reduce morbidity;
2.Increase milk production, increase meat by 15%-25%;
3.Long-term storage without deteriorating, convenient for storage and transportation, less waste;
4.High feeding precision, control product size accuracy is 0.02mm;

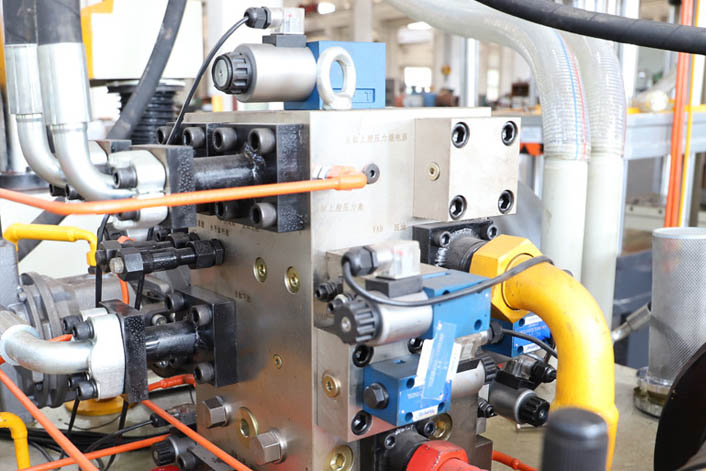

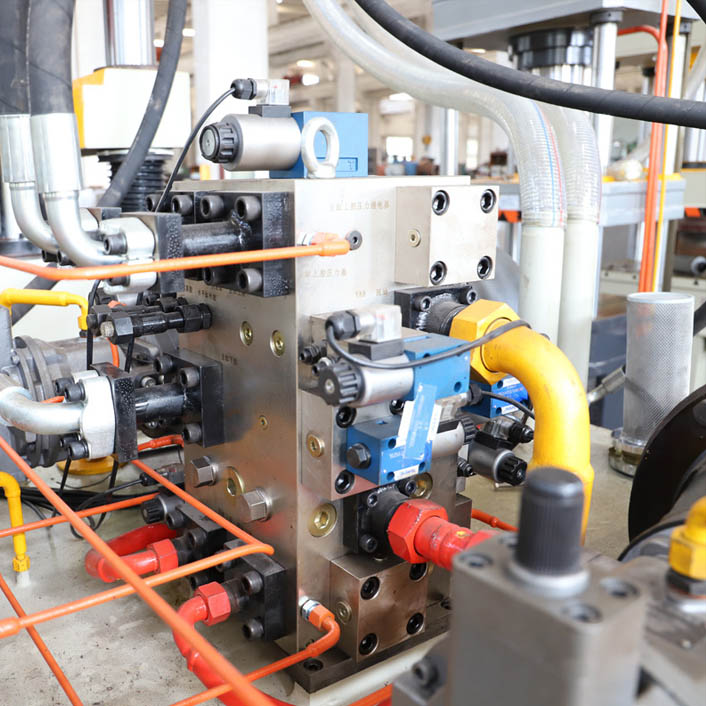

5.Hydraulic system, it consists of fuel tank, motor, oil pump, cartridge valve,pressure gauge, liquid level gauge, high pressure hose, thermometer, oil return filter, cooler and so on, with compact structure.
6.The salt brick machine is made of stainless steel, durable with long life service,and prevent corrosion of the equipment.
