Main Features of the Feed Pellet Plant :

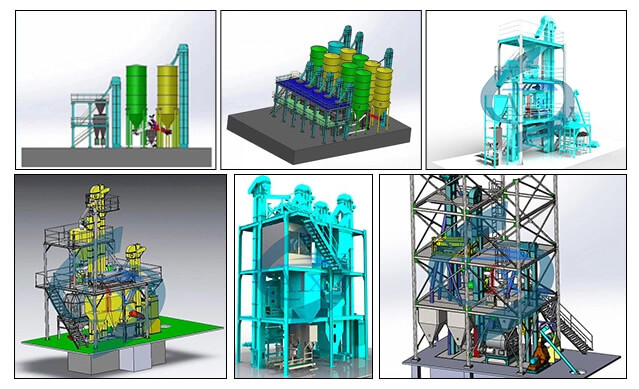

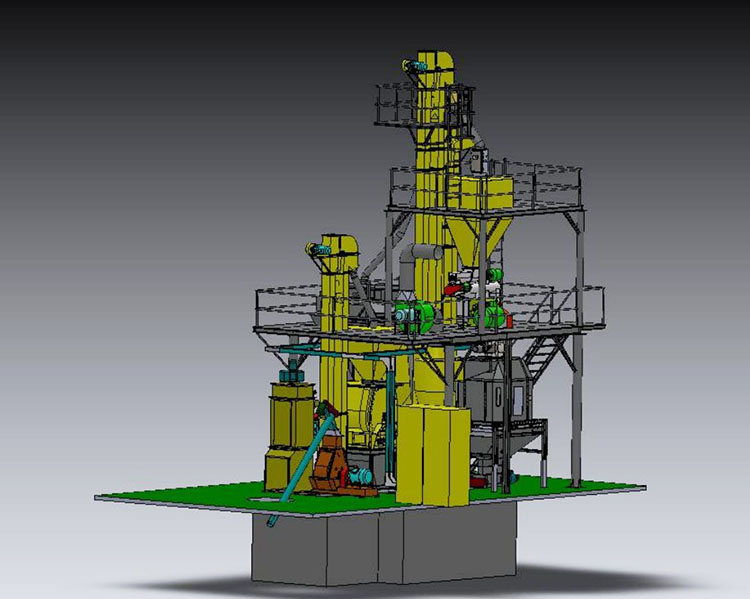

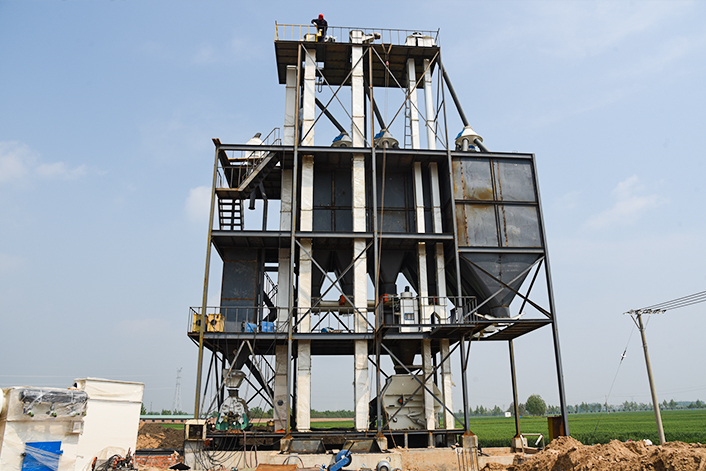

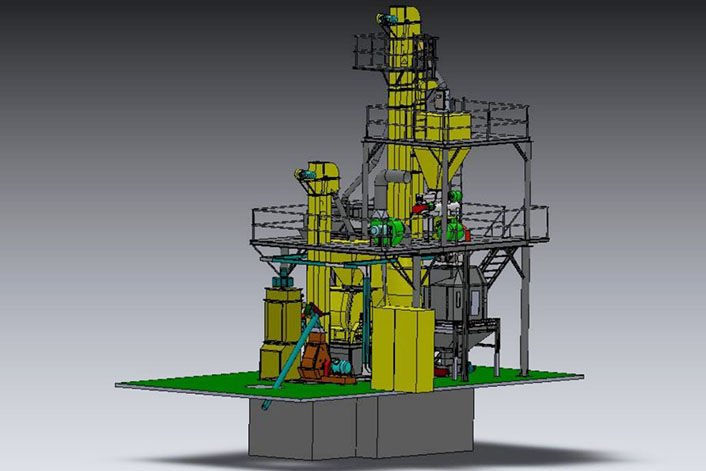

1. The structural form has two types: integral steel frame and floor type. The overall steel frame layout is compact, beautiful shape and style; the floor type is easy to use and maintain.
2. Small and medium-sized  feed pellet production line adopts manual metering and ingredients, and the equipment investment is small, economical and practical.

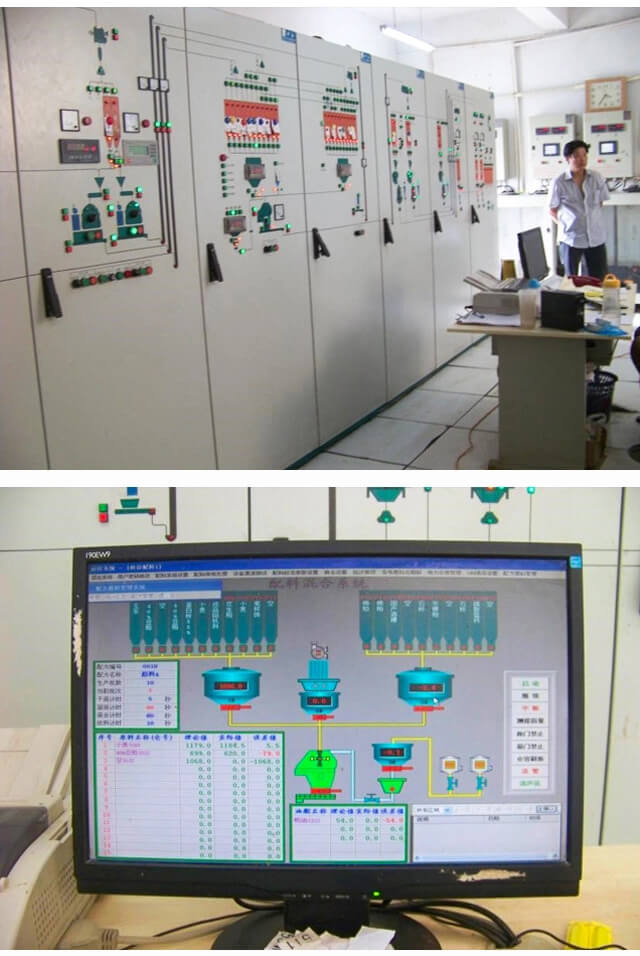

3. Large and medium-sized complete feed pellet production line adopts computer automatic metering and batching, with good batching precision, high degree of mechanization and automation.
4. the project is designed by our company is keeping up with domestic and international development trends.
Introduction of this Feed Pellet Plant:

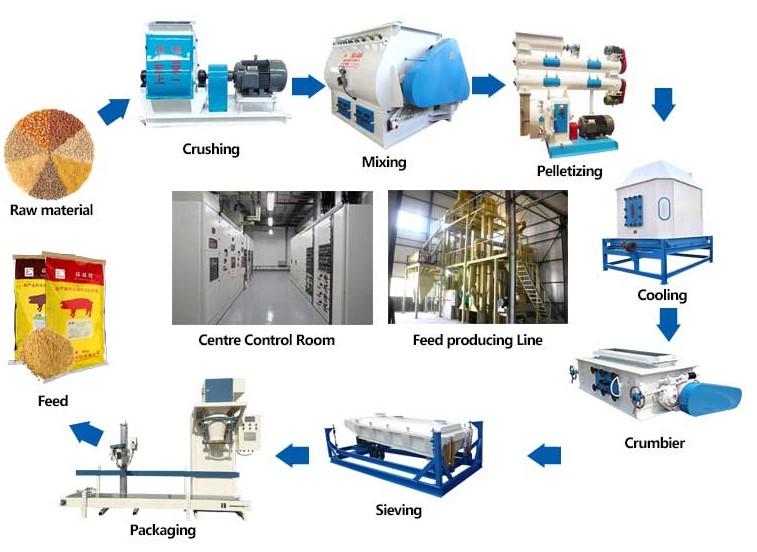

Raw materials receiving and cleaning section------ Crushing section ---Mixing section-----Pellet section-----Pellet cooling process-- Screening section ---Packaging section.
According to the customer size to design the line, and the line capacity is from 1-20t/h.
Animal feed production line capacity is from 1-20t/h
The whole line process is continuous and reasonable, and the performance of each single machine is good. The feed pellet production line has compact structure, small floor space, low energy consumption and high efficiency. Size can be from 2mm to 10mm to suitable for different animals such as cow,sheep, rabbit, pig, chicken, duck,sinking fish feed  etc. we can supply different capacity animal feed production line, such as 0.5-1t per hour, 2-4ton per hour, 5-6ton per hour, 8-10ton per hour 10-15ton per hour, 15-20ton per hour. We factory with strong technology team ,also can design as customer’s requirements.
Animal feed production line

Main Applications of this Feed Pellet Plant:
Animal feed production line has rice nutrition,it is good for the animal growth. The line can be used for pig,cattle,chicken,etc, also can feed for fish and shrimps.Different animal need different diameter pellet.
Technical Parameters:
Item Technical parameters and performance index
 SZLH250 SZLH320 SZLH350 SZLH400 SZLH420 SZLH508
Capacity (t/h) 0.5-1 2-5 2-7 3-12 3-14 4-20
Power (Kw) Main machine 15 37 55 75/90 90/110 110/132/160
Screw feeder 0.55 0.75 0.75 1.5 1.5 1.5
Conditioner 2.2 2.2 3 5.5 5.5 11
Inner diameter of die (mm) φ250mm φ320mm φ350mm φ400mm φ420mm φ508mm
Effective width of die (mm) 120mm 120mm 120mm 120mm 120mm 150mm
Rotary(rpm) Die 328 328 328 248 248 248
Screw feeder 12-120 12-120 12-120 12-120 12-120 12-120
Conditioner 300 300 300 270 270 270
Pellet size (mm) φ2—φ10mm φ2—φ10mm φ2—φ10mm φ2—φ10mm φ2—φ10mm
φ2—φ10mm
