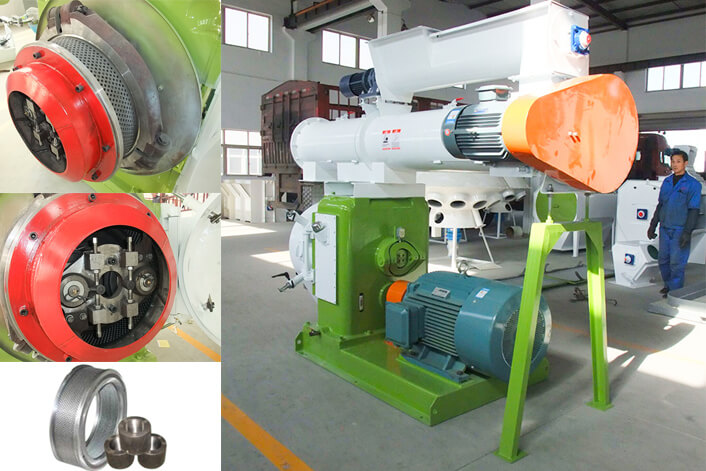

Ring die pellet machine (1)
Ring die pellet machine (2)
Ring die pellet machine (3)

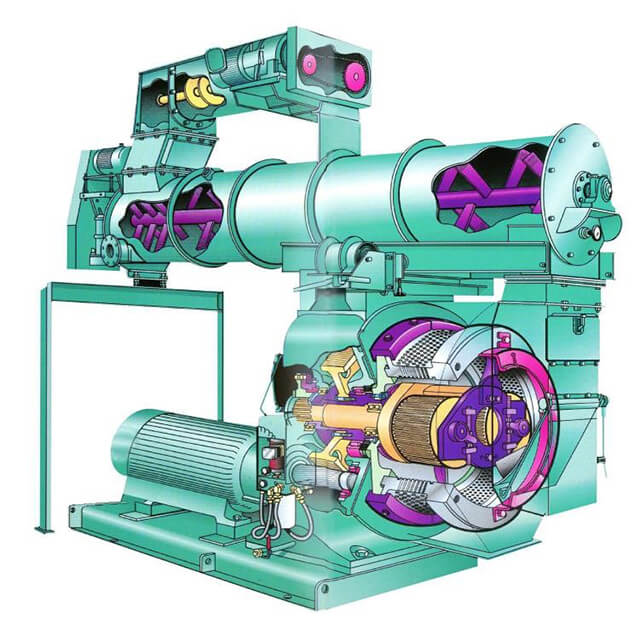

Ring die pellet machine model
Ring die pellet machine (1)
Ring die pellet machine (2)
Ring die pellet machine (3)
Ring die pellet machine model
Introduction of the Ring Die Feed Pellet Machine
Ring die pellet machine is used for small farm,middles scale feed factory,and livestock farm.in general the machine will be used for animal feed line and the machine is most key part.
The line has 7 parts:
Raw materials receiving and cleaning section------ Crushing section ---Mixing section-----Pellet section-----Pellet cooling process-- Screening section ---Packaging section.
Technical Parameters:
Model Main Motor Power (kw) Conditioner Power (kw) Feeder power(kw) Ring die bore(mm) Size of Finished pellets (mm) Yeild (t/h) for animal feed
SZLH-250 22 1.5 0.75  250 1.5-12 1-2.5
SZLH-320 37 2.2 1.5 320 1.5-12 2-4
SZLH-350 55 2.2 1.5 350 1.5-12 2-6
SZLH-400 90 3 1.5 400 1.5-18 3-8
SZLH-420 110 5.5 1.5 420 1.5-18 4-12
SZLH-508 160 7.5 2.2 508 1.5-18 4-18

Material: corn straw,rice husk,soybean,soymeal,wheat,beans,etc.
Features of this Ring Die Feed Pellet Machine :
1. Feeder is made of stainless steel with anti-lump structure.
2. Main drive adopt high accurate belt.
3. The machine has iron removal device,overload protection device and trip switches,ensure safe operation.
4. The conditioner has single layer and multi-layer,you can according to your requirement to chose.
5. The machine with high working efficiency and advance design,it is easy to operation.
Applications of this Ring Die Feed Pellet Machine:
The machine can use for middle and big factory ,livestock farm to feed cow,cattle,sheep,pig,chicken,goose,duck,rabbit,etc.
Product show

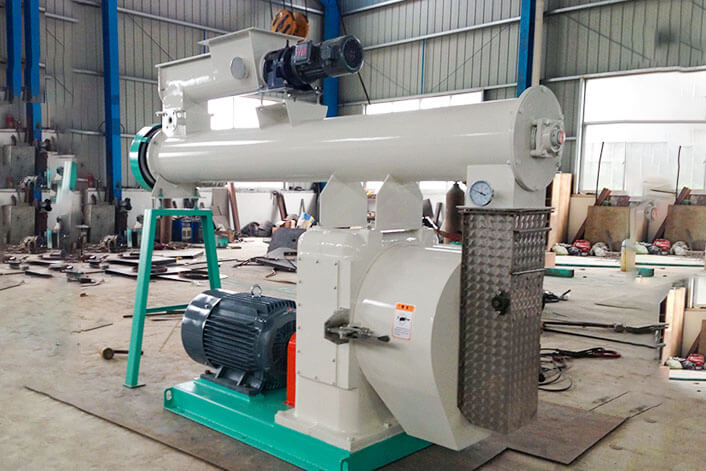

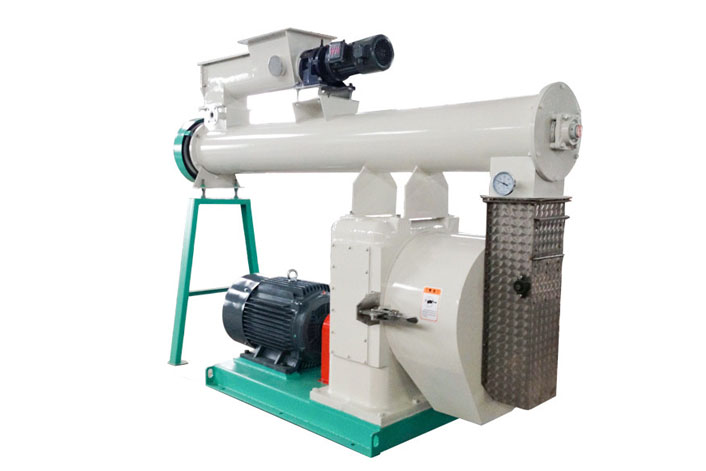

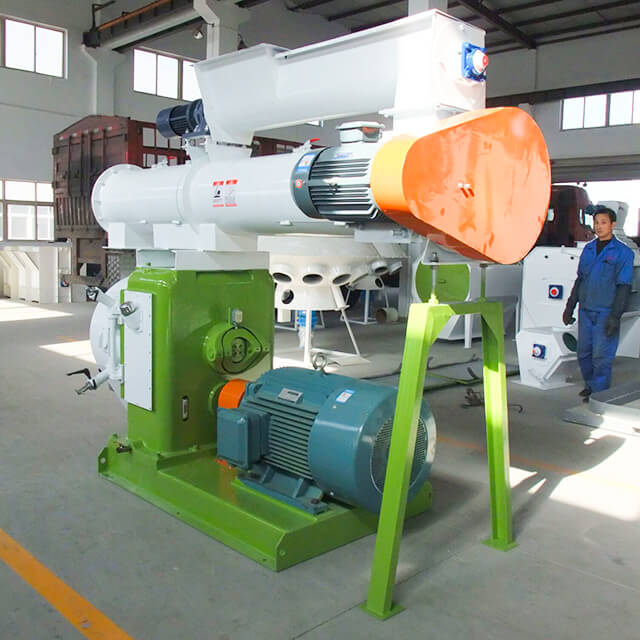

Ring die pellet machine

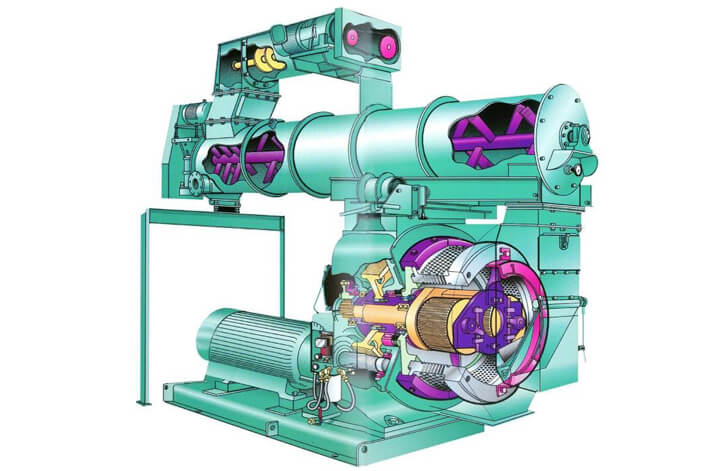

Ring die pellet machine model
