Describe
The machine was crush corn,wheat,soybean,sorghum,forage,etc.It was used for large animal feed factory to use.
Parameter
Model AIX56*36 AIX56*40 AIX708*40 AIX968*40
Rotor Diameter (mm) 560 560 708 968
Width of grinding chamber (mm) 360 400 400 400
Rotate speed(r/min) 2940 2950 2970 1480
Number of Hammers 40 40 80 44
Capacity T/H 1-3 2-5 3-8 6-10
Power (kw) 22 37 55 90-110
Product show

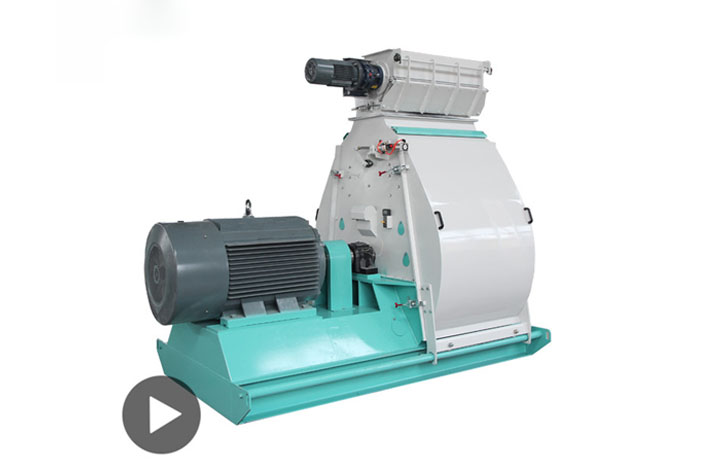

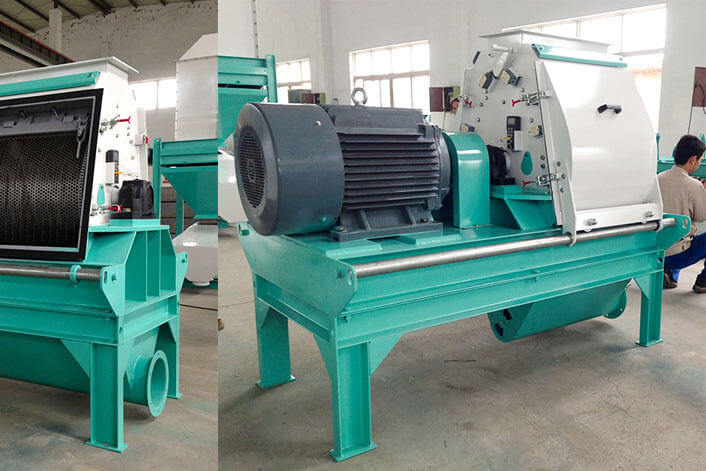

Water drop hammer mill show

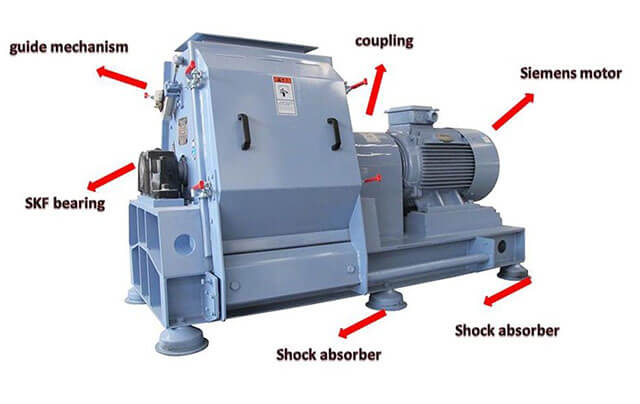

Product detail

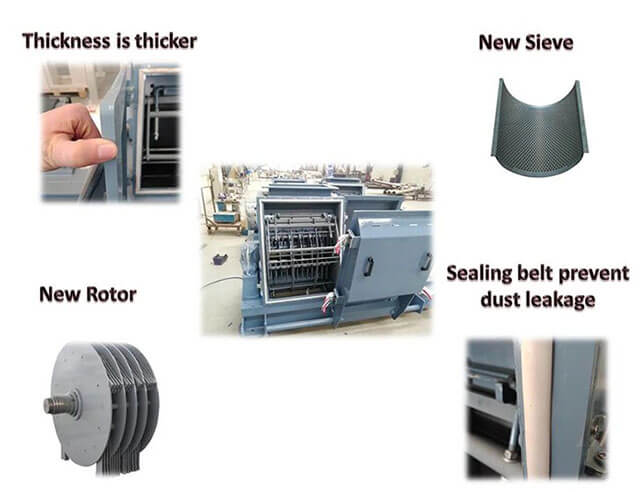

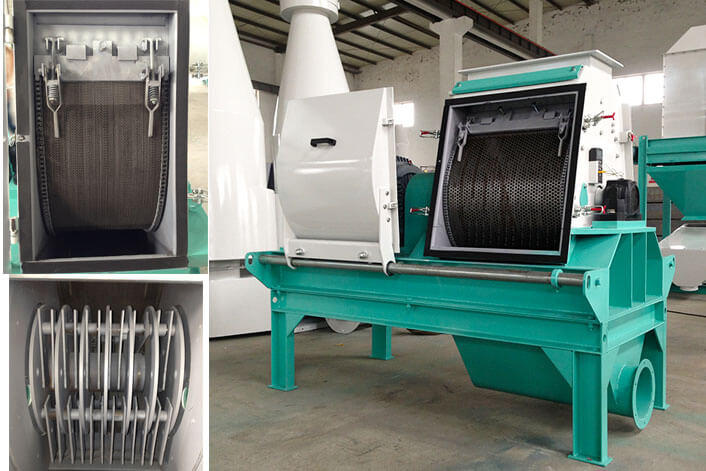

Water drop hammer mill detail
Features:
1. This series hammer mill is water drop structure. It is made of welded steel.
2. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life.
3. The rotor is dynamic balanced and can work two direction , Hammer pieces are symmetrical arrangement.
4. This machine has simple structure, strong and durable, safe and reliable, easy to install, easy to operate, slight vibration, and high productivity.

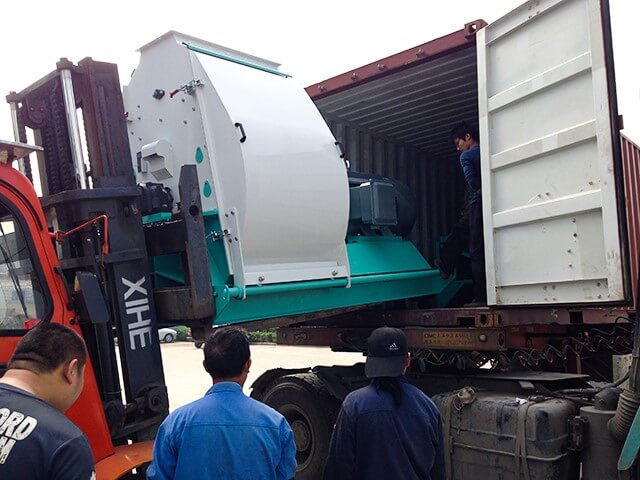

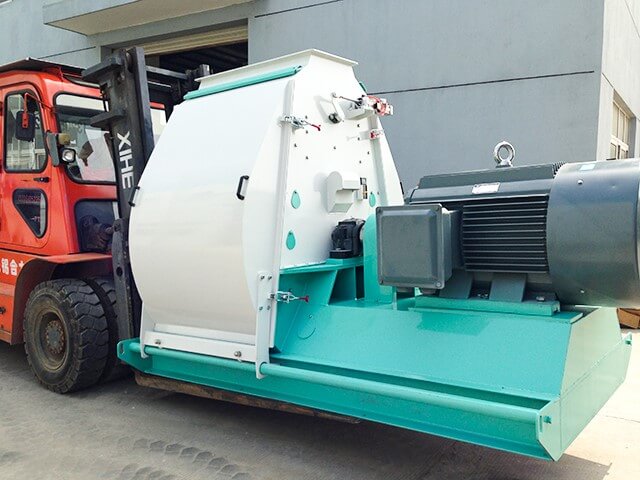

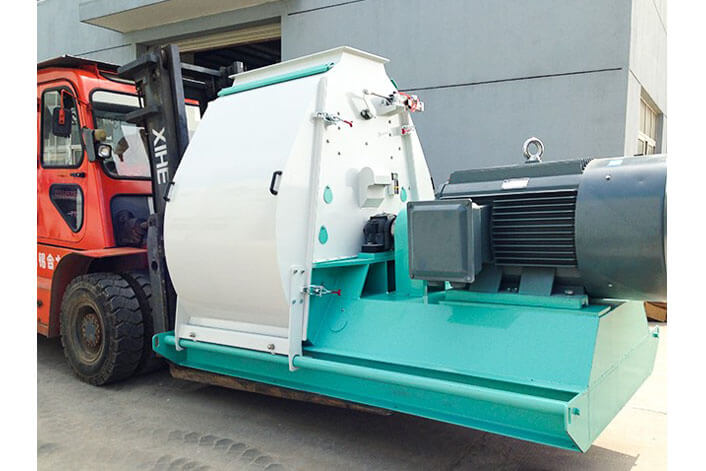

Water drop hammer mill loading container:
Water drop hammer mill loading container (1)
Water drop hammer mill loading container (2)

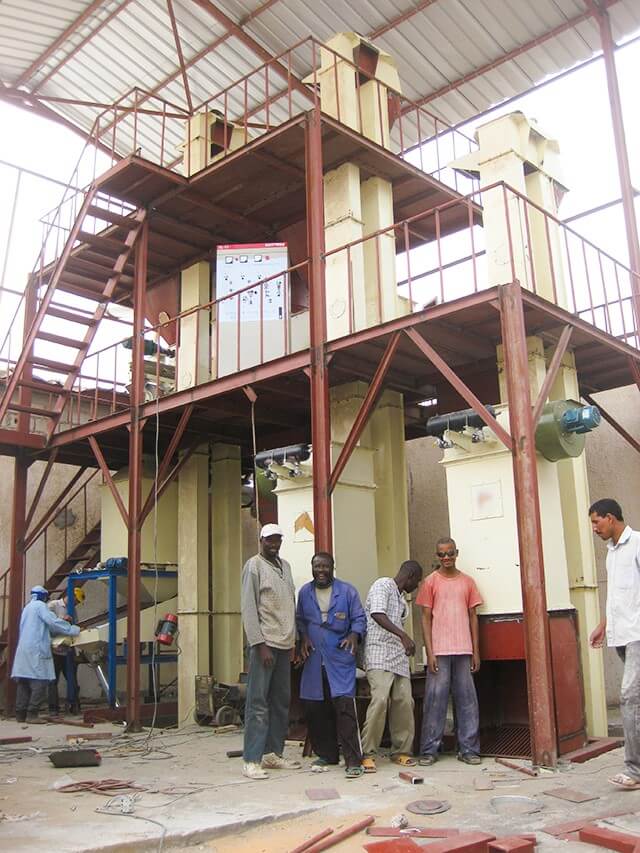

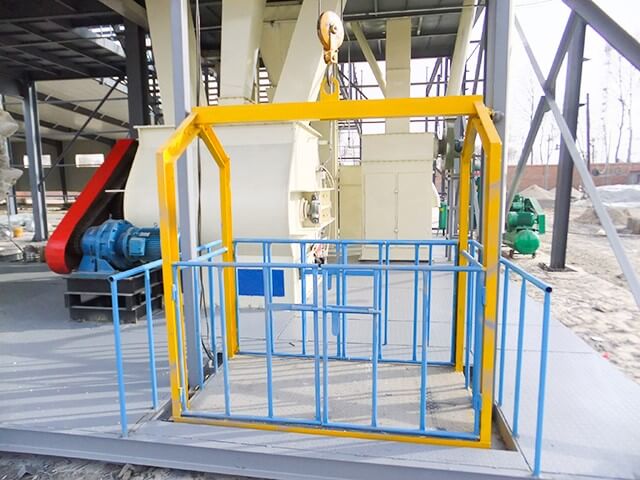

Application case:
Water drop hammer mill case (1)
Water drop hammer mill case (2)
