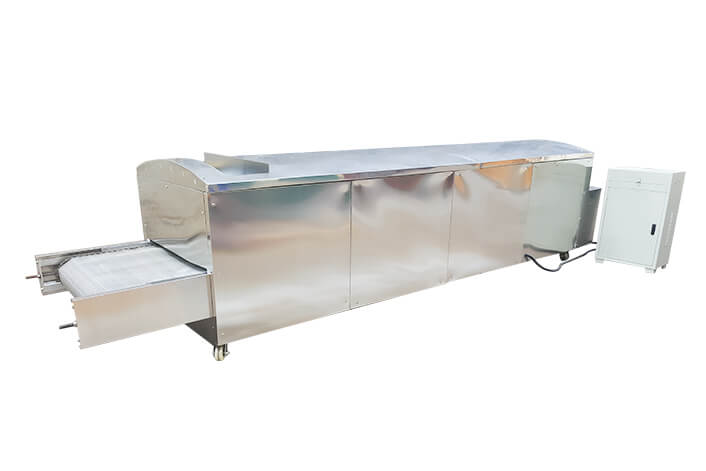

Mesh belt dryer introduction
The mesh belt dryer is a drying device that uses the steel mesh as the conveyor belt to carry the material for continuous drying. Because the conveyor belt is mesh, it is used for drying rules or irregularities (such as pellets, coal, Various mineral powders are formed quickly, food, vegetables, etc.) are most suitable. This machine can be used with other equipment. It can also be used alone. The equipment can be widely used in metallurgy, building materials, ceramics, fertilizer, chemical, feed and other industries, and the mesh belt dryer is also an ideal equipment for drying food and vegetables.
Parameter
Model AIX-1.2-8 AIX-1.2-10 AIX-1.6-8 AIX-1.6-10 AIX-2-8 AIX-2-10
Number of units 4 5 4 5 4 5
Bandwidth (m) 1.2   1.6   2
Dry section length (m) 8 10 8 10 8 10
Excipient thickness (mm) 10-80
Operating temperature (℃) 50-120
steam pressure (Mpa) 0.2-0.5
Steam consumption (kg/h) 120-130 150-375 150-375 170-470 180-500 225-600
Heat exchange area (m2) 272 340 352 440 448 560
Drying time (h) 0.2-1.2 0.25-1.5 0.2-1.2 0.25-1.5 0.2-1.2 0.25-1.5
Dry strength (kg/h) 60-160 80-220 75-220 95-250 100-260 120-300
Number of fans 5 6 5 6 5 6
Total internal power (kw) 9.9 12.1 9.9 12.1 18.2 22.2
Total equipment power (kw) 11.4 13.6 11.4 13.6 19.7 23.7
Size (m) 9.77*1.5*2.83 11.77*1.5*2.83 9.77*2.24*2.83 11.77*2.24*2.83 9.77*2.66*3.5 11.77*2.66*3.5
Weight (kg) 4800 5780 5400 6550 6350 7800
Working principle
The mesh belt dryer is a batch and continuous production drying equipment. The main heating methods are electric heating, steam heating and hot wind heating. The main principle is to evenly spread the material on the mesh belt. The mesh belt adopts a 12-60 mesh steel mesh belt, which is ply and moved in the dryer by the transmission device. The hot wind flows through the material, and the water vapor passes from The drainage hole is discharged to achieve the purpose of drying, and the length of the box body is composed of standard sections. In order to save the space, the dryer can be made into a multi-layer type, and the common one has two compartments, three layers, two compartments, five layers, and a length. 6-40m, effective width 0.6-3.0m.
Performance feature
1、Small investment, fast drying speed and high evaporation intensity.
2、High efficiency, large output and good product quality.
3、Standardized production can increase the number of segments according to production.
4、The air volume, heating temperature, material residence time and feed rate can be adjusted to achieve the drying effect.
5、The equipment is flexible in configuration and can be used with a belt rinsing system and a material cooling system.
6、Most of the air is recycled, which is highly energy efficient.
7、The unique wind distribution device makes the hot wind distribution more uniform and ensures the consistency of product quality.
8、The heat source can be matched with steam, heat transfer oil, point or gas hot blast stove.
Advantage:
(1) The automatic control system can select the drying temperature and humidity according to the process requirements of different products, and it solve the problems of long drying time, high temperature and high energy consumption in other drying methods and the cost performance is high.
(2) The high-quality centrifugal fan has the characteristics of strong wind power, uniform airflow and low noise, and the material is evenly and quickly dried.
(3) During the drying process, the material does not deform, crack, discolor, no deterioration, no oxidation, good drying effect, good rehydration after drying, less loss of nutrients, long storage period, more effective protection of the color, aroma and taste of the dried product. , type and active ingredients.
(4) The machine is designed in an integrated manner, and the pipeline and power supply can be used at the site; the operation is convenient, and after the parameters are set, automatic control can be realized with high reliability.
(5) With low investment and good effect, it can be reconstructed by using old kiln, garage, etc., and can be moved, saved floor space, etc., simple and convenient.
