Dry Floating Fish Feed Machine
Brief Introduction of this Dry Floating Fish Feed Machine
The floating fish feed machine is widely used for producing high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. it has become an ideal equipment for small and medium fish farm holders or fish feed processing plant.The final feed pellets have unique shape and good taste, high nutrition and smooth textures. The pellets floating time on water surface can be adjusted by the extrusion degree. The puffing fish feed pellets can float on the water surface for over12 hours without water polution.
Requirement of Raw Material
Type: Flour, corn starch, rice bran, meat meal, bone meal, fish meal, etc.
Size: about 60-80 mesh which were crushed and well mixed.
Moisture content: about 20%-25%.
Starch content: ≥30%.
Oil content: ≤10%.
Usages of Final Pellets
Aquatic feed pellets:kinds of fish, shrimp, frog, etc.
Pet feed pellets: dog, cat, rabbit, chicken, goose, duck, pig, etc.
Features of this Dry Floating Fish Feed Machine
• Fish feed pellet machine adopting international advanced technology, the pellets are very even.
• We can get the different size and length of pellet diameter ( diameter from 1mm to 8mm).
• The electric heating device improve the feed expansion rate.
• High temperature and high pressure can kill the salmonellosis and bacterial infections.
• It can produce the higher-protein animal feed, and easy to digest.
• The floating fish feed pellet machine not only can work with electric motor also can work with diesel engine, which can meet customers’ place without electricity. Also if no 3-phase electricity, can choose DGP-40 machine which can work with one single phase electricity.

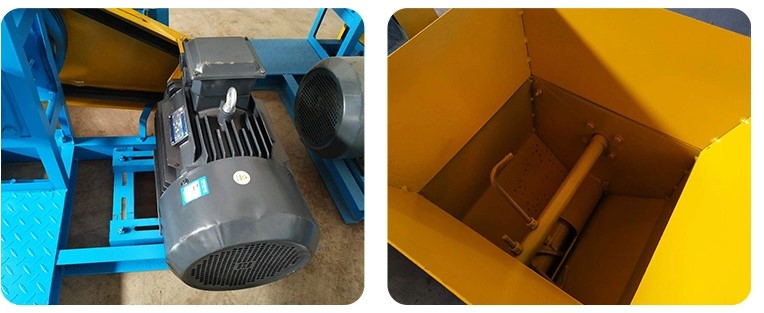

Like picture show

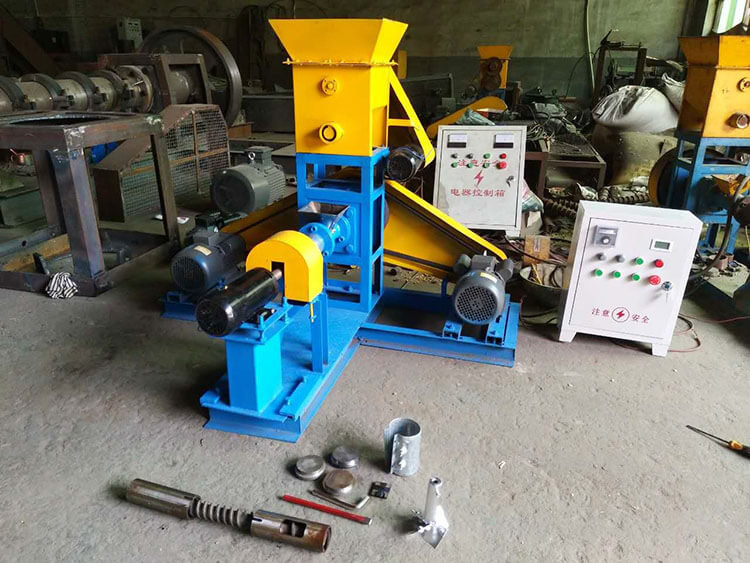

DGP-40 single phase:

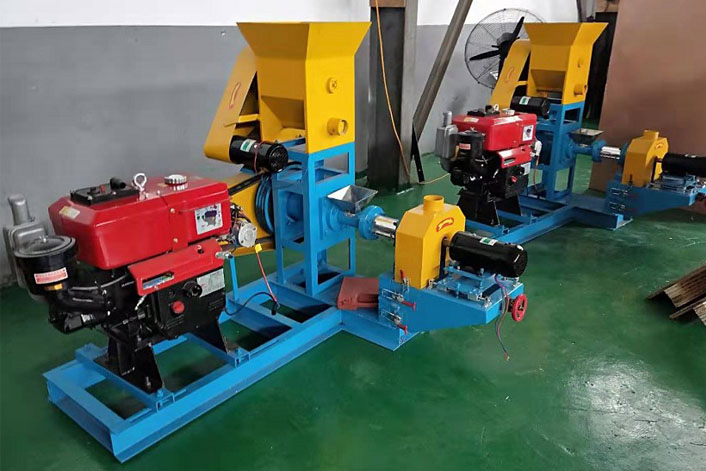

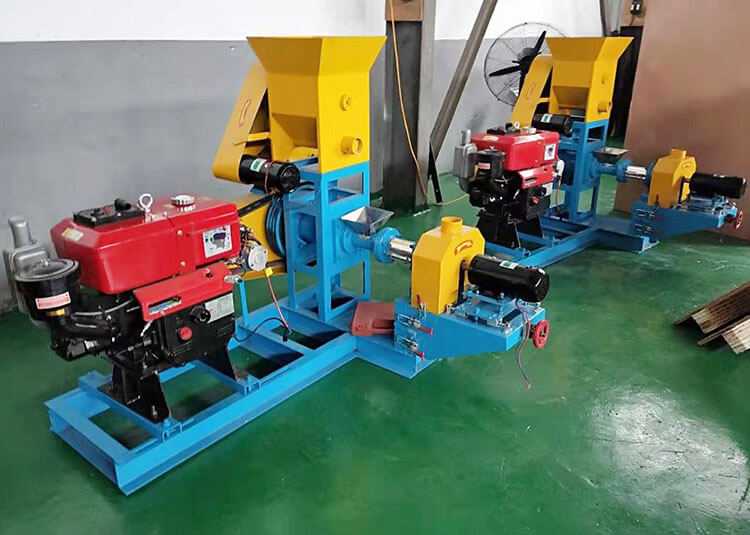

Diesel engine type:
Parameter of this Dry Floating Fish Feed Machine:
|
Model |
Capacity (t/h) |
Main power (kw) |
Feeding power (kw) |
Screw diameter (mm) |
Machine size (mm) |
Cutting power (kw) |
Machine weight (kg) |
|
DGP-40(single phase) |
0.03-0.04 |
3*2 |
0.4 |
φ40 |
1400*1030*1200 |
0.4 |
220 |
|
DGP-40(3phase) |
0.03-0.04 |
5.5 |
0.4 |
φ40 |
1400*1030*1200 |
0.4 |
240 |
|
DGP-50 |
0.06-0.08 |
11 |
0.4 |
φ50 |
1470*1100*1250 |
0.4 |
320 |
|
DGP-60 |
0.12-0.15 |
15 |
0.4 |
φ60 |
1470*1120*1250 |
0.4 |
350 |
|
DGP-70 |
0.18-0.25 |
18.5 |
0.4 |
φ70 |
1650*1400*1300 |
0.4 |
580 |
|
DGP+80 |
0.3-0.35 |
22 |
0.4 |
φ80 |
1800*1450*1300 |
0.6 |
695 |
|
DGP-90 |
0.4-0.45 |
37 |
0.4 |
φ90 |
2100*1450*1350 |
1.5 |
950 |
|
DGP-120 |
0.5-0.7 |
55 |
0.4 |
φ120 |
2400*1950*1600 |
2.2 |
1700 |
|
DGP-135 |
0.8-1.0 |
75 |
0.4 |
φ133 |
2550*2050*1650 |
2.2 |
1900 |
|
DGP-160 |
1.2-1.5 |
90 |
0.75-1.1 |
φ155 |
3100*2650*1800 |
3.0 |
3200 |
|
DGP-200 |
1.8-2.0 |
132 |
1.5 |
φ195 |
3100*2850*1900 |
3.0-4.0 |
3800 |

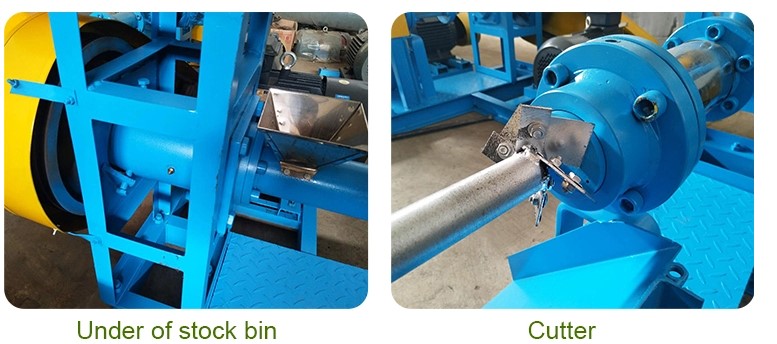

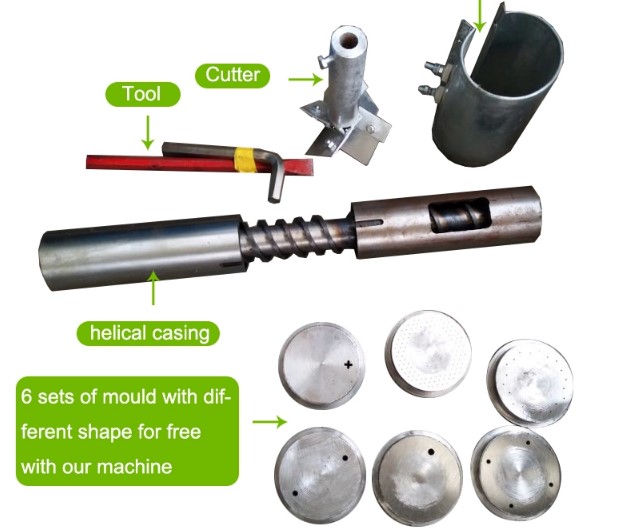

Floating fish feed pellet machine structure
