Wet Type Floating Fish Feed Pellet Extruder
Wet Type Floating Fish Feed Pellet Extruder

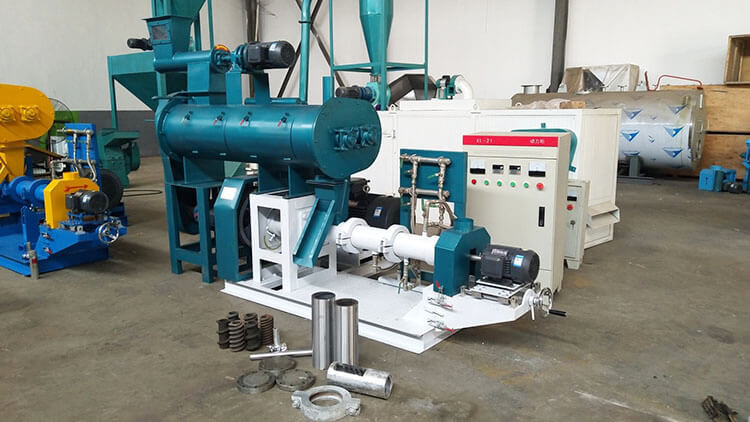

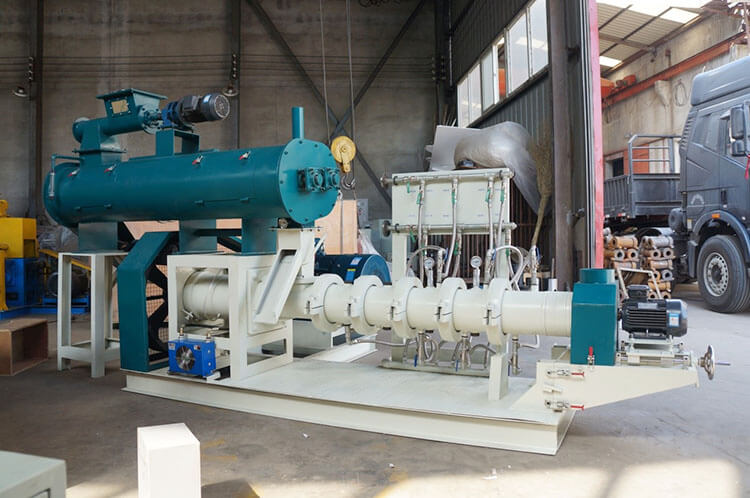

Model DSP-90 wet type fish feed extruder

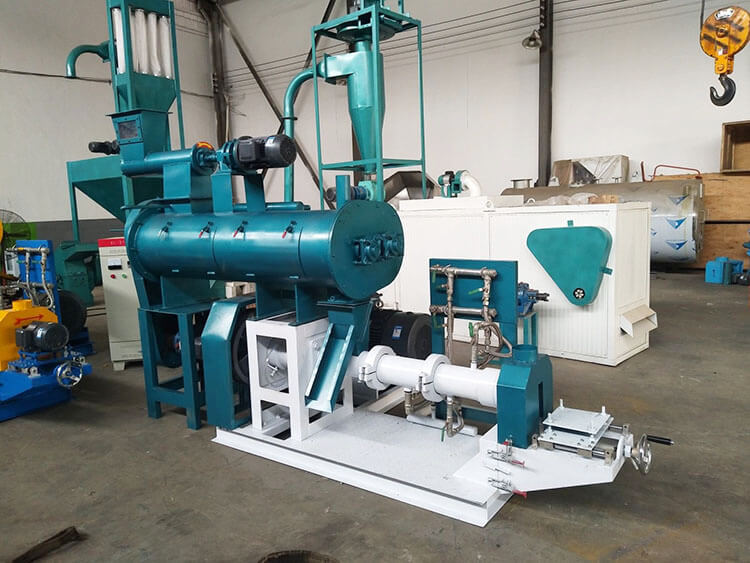

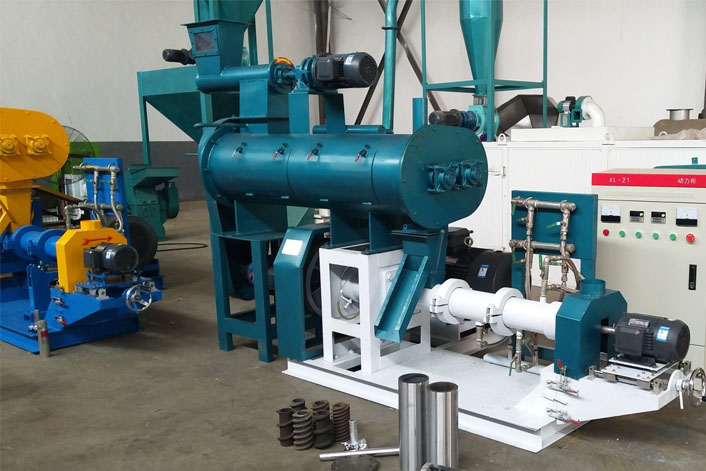

Model DSP-80 wet type fish feed extruder

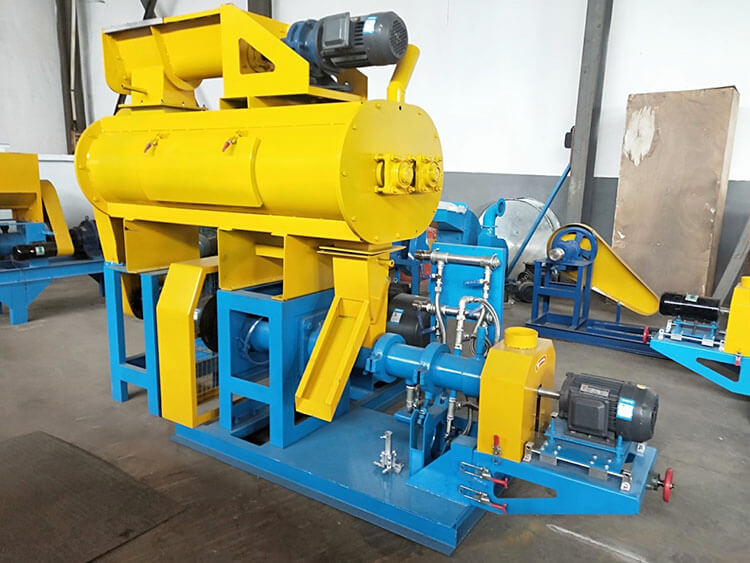

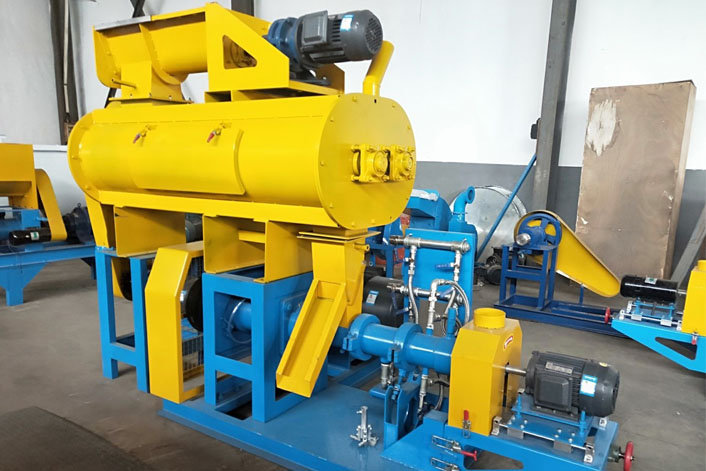

Model DSP-70 wet type fish feed extruder

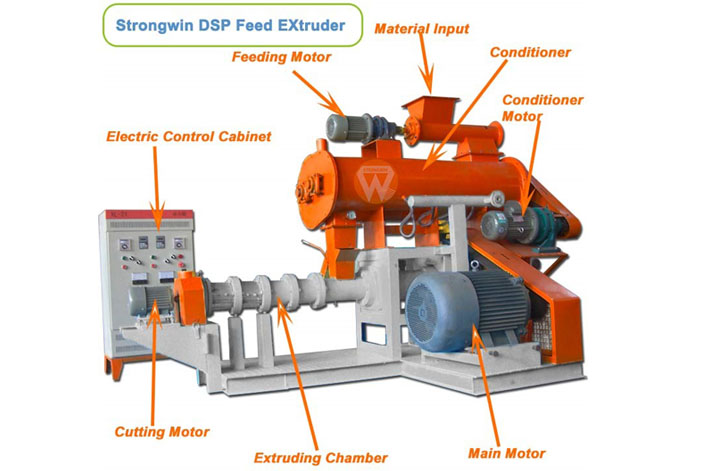

wet type fish feed extruder detail

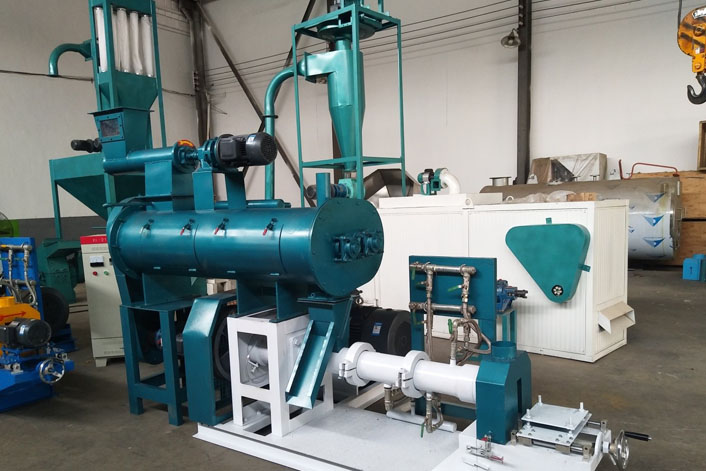

Model DSP-90 wet type fish feed extruder

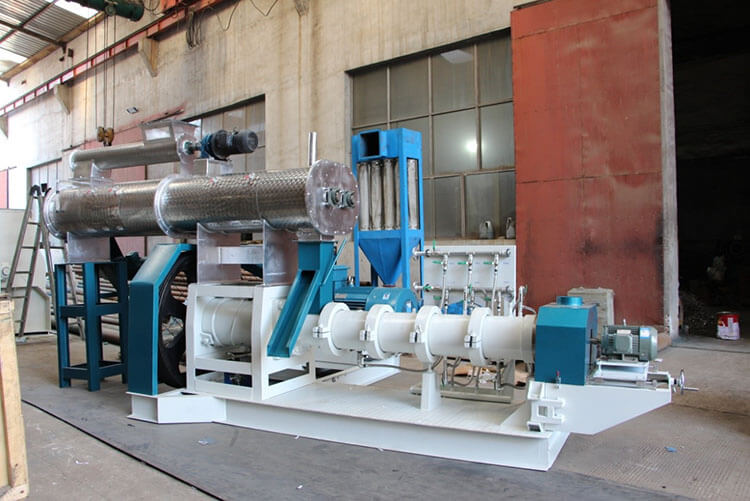

Model DSP-80 wet type fish feed extruder

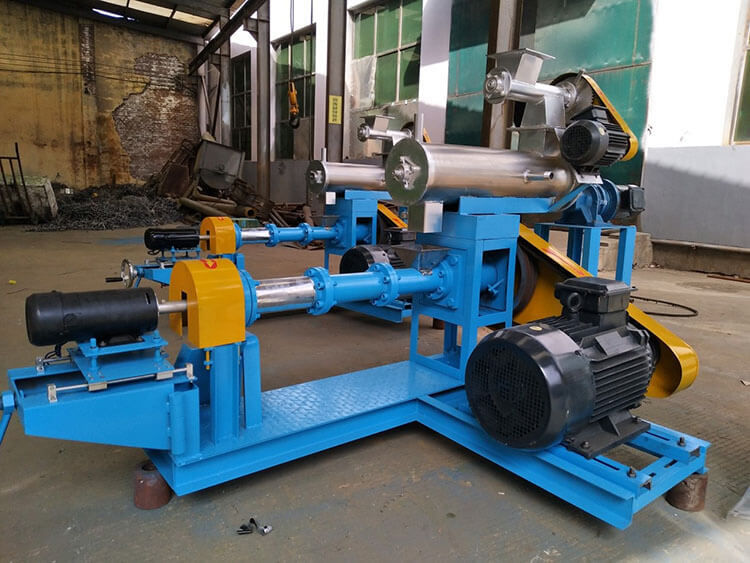

Model DSP-70 wet type fish feed extruder

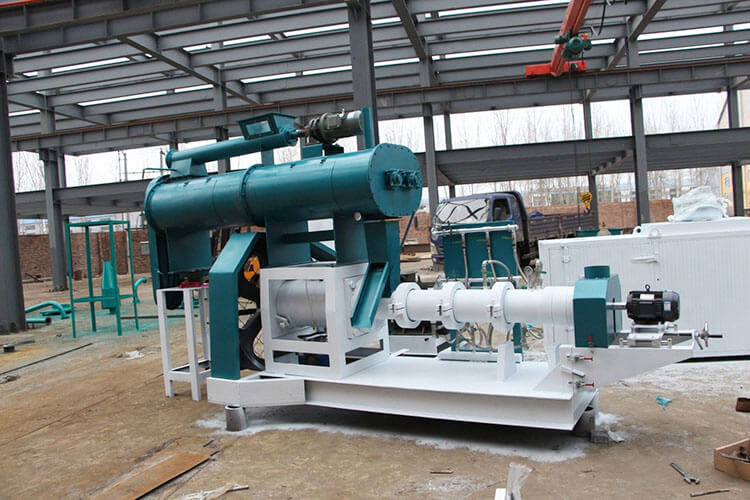

wet type fish feed extruder detail
Brief Introduction of this Wet Type Floating Fish Feed Pellet Extruder :
Wet type fish feed pellet machine requires a steam boiler to continuously provide steam to the conditioner. The floating fish pellets made by this wet type fish feed pellet making machine has better quality, and can float on the water surface for more than 24 hours. This wet type fish feed extruder can also be used to make sinking fish feed pellets and other kind of aquatic feed, or this fish feed machine can also be used as pet food machine to make  pet food for cat, dog, etc.
The raw material required: Flour,corn starch,rice bran,meat meal,bone meal,fish meal,soybean meal etc.
Fitness: about 60-80mesh which were crushed and mixed
Moisture content: about 20%-25%
Starch content: ≥30%
Oil content: ≤10%
Features of this Wet Type Floating Fish Feed Pellet Extruder:
1.Variably configurations of screw bolts are available for different formulas and raw materials.
2.Barrel and screw adopt alloy steel with heat treatment, having a long service life.
3.Cutting speed can be adjusted to cut the material into different length.
4.Molds can be changed to make fish feed pellets with diameter form 1.0 to 10mm.
5.Molds can be changed to produce different shapes of feed pellets.
6.Screw sleeve adopts jacketed construction, which can be injected in with hot steam or cooling water, thus the extruding temperature can be controlled effectively.
7.The conditioner can make the materials have fully gelatinization of starch by a combination of hot steam and mechanical shear/mixing. The materials may remain in the conditioner for a time over 180s.
Wet Type Floating Fish Feed Pellet Extruder Advantages
1.Feeding evenly and constantly: Flat-bottomed scraper mechanism and feeder controlled by transducer make sure that the materials can be fed evenly and constantly.
2.High efficiency and low power consumption: With conditioner, the steam and water can be directly injected into the extruding chamber through special mechanism, thus the quality and quantity of products can be improved greatly with lower power consumption.
3.Cutting quickly and accurately: Removable cutting mechanism use knives with good elasticity, which attach to the die plate tenderly and can be regulated in six directions, can be operated quickly and accurately.
4.Wide application: Variably configurations of screw bolts can match the producing demands for different formulas and raw materials.br /> 5.Longer service life: Screw bolts and dies are processed through vacuum quench treatment, also be processed with high processing precision and have a long using longevity.
6.Easy operation: All the operating parts like steam valves, etc, adopt the humanization design, in order to facilitate actual operations.
Main parameters
Model Capacity (t/h) Main power (kw) Feeding power (kw) Screw diameter (mm) Cutting power (kw) Conditioner (kw) Size (mm) Weight (kg)
DSP-60 0.18-0.2 15 0.4 60 0.4 0.75 1780*1250*1300 480
DSP-70 0.25-0.30 18.5 0.6 70 0.6 1.1 2460*1550*1740 940
DSP-80 0.35-0.40 22 1.1 80 0.75 1.5 2650*1450*1750 1000
DSP-90 0.50-0.60 37 1.1 90 1.1 2.2 2600*2100*1900 2000
DSP-120 0.70-0.80 55 1.1 120 1.5 2.2 3200*1950*1900 2200
DSP-135 1.0-1.2 75 1.5 135 2.2 3.0 3750*1980*1800 2500
DSP-160 1.0-1.2 90 2.2 160 2.2 4.0 6600*2800*2330 3800
DSP-200 3.0-4.0 132 2.2 200 3.0 5.5 6600*2900*2350 4500
Model DSP-60 wet type fish feed extruder
Model DSP-60 wet type fish feed extruder
Model DSP-70 wet type fish feed extruder
Model DSP-70 wet type fish feed extruder
Model DSP-80 wet type fish feed extruder
Model DSP-80 wet type fish feed extruder
Model DSP-90 wet type fish feed extruder
Model DSP-90 wet type fish feed extruder
Model DSP-135 wet type fish feed extruder
Model DSP-135 wet type fish feed extruder
Model DSP-160 wet type fish feed extruder
Model DSP-160 wet type fish feed extruder
Model DSP-200 wet type fish feed extruder
Model DSP-200 wet type fish feed extruder
