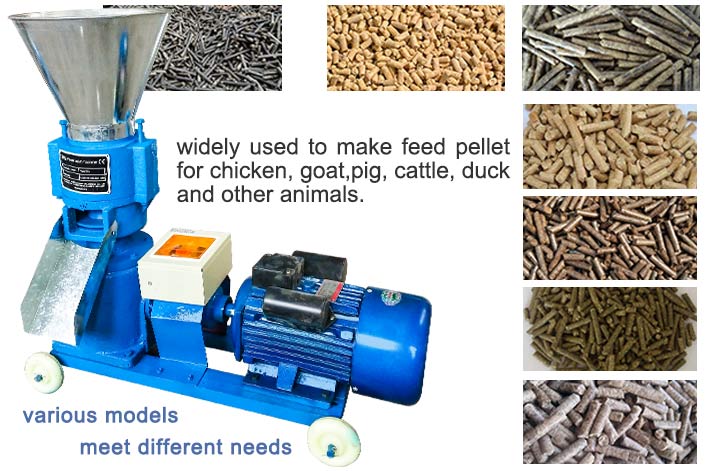

Multifunctional Feed Pellet Machine
Brief Introduction of this Multifunctional Feed Pellet Machine
Multifunctional feed pellet machine processes the mixed powdered feed into a cylindrical pellet feed by extrusion.Adding dry raw materials, no need to add water during the granulation process, no drying, natural heating up to 70 °C-80 °C.

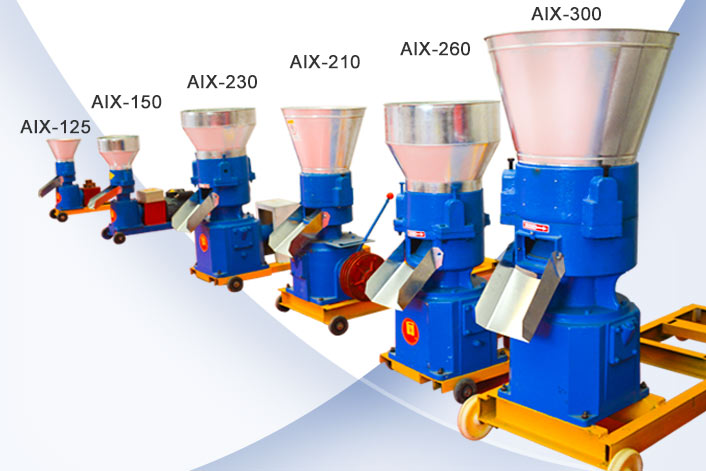

Parameter
|
Model |
Power (kw) |
Production (kg/h) |
Particles size (mm) |
Size (mm) |
Weight+motor (kg) |
|
125 |
3 |
40-50 |
2.5-6mm |
1040×550×1140 |
32+36 |
|
150 |
4 |
75-125 |
2.5-6mm |
1280×600×1250 |
48+44 |
|
210 |
11 |
200-250 |
2.5-8mm |
1500×850×1400 |
89+100 |
|
260 |
15 |
350-500 |
2.5-8mm |
1980×800×1600 |
180+124 |
|
300 |
18.5 |
500-800 |
2.5-10mm |
2080×900×1750 |
260+153 |
|
360 |
30 |
800-1200 |
2.5-10mm |
2000×860×1700 |
340+215 |
|
400 |
37 |
1200-1500 |
2.5-10mm |
2200×1200×1950 |
400+264 |

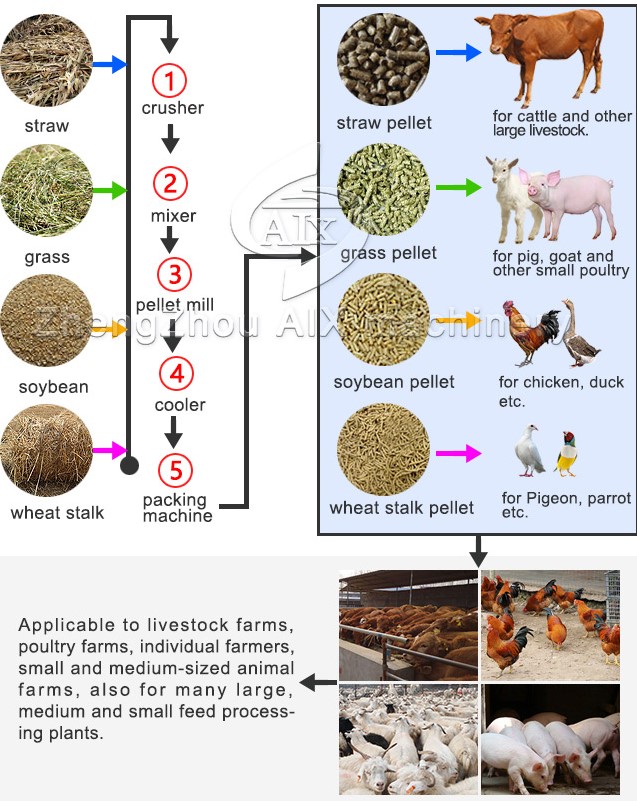

Application of this Multifunctional Feed Pellet Machine:
Soybean meal, grain, straw, green fodder, meat and bone meal, whey powder, oil, fish meal, miscellaneous meal, etc. can be processed and produced.
Poultry, livestock and pet feed can be processed (pig feed, cattle feed, sheep feed, fish feed, chicken feed, duck feed, goose feed, etc.)
Advantages
Grinding hole diameter 3~7mm,Size is optional, length is adjustable.Grass powder granules, grain granules, and mixture granules can be processed.Durable and quiet small paint surface adopts dust-free workshop spray/painting, not easy to fall off, simple structure, wide applicability, small footprint and low noise.

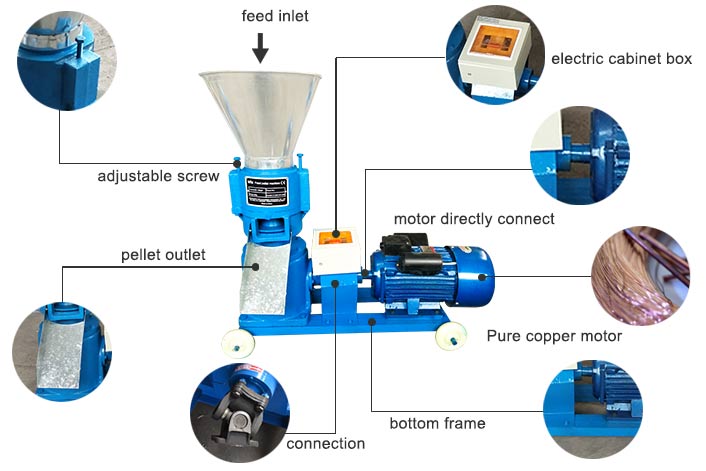

Details of this Multifunctional Feed Pellet Machine:

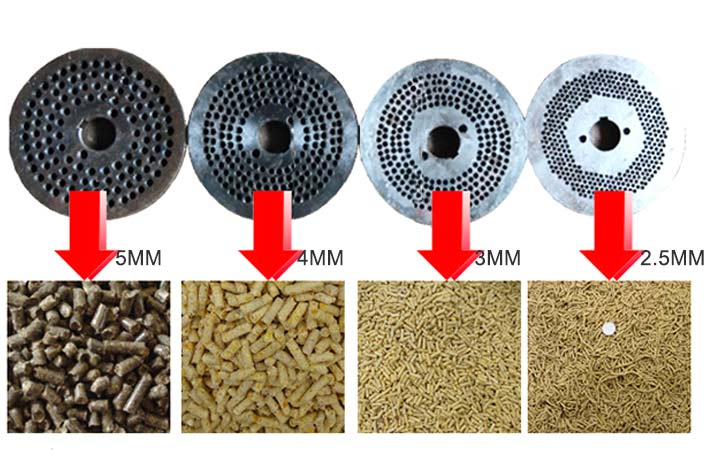

Small feed pellet production line particles size
Uniform processing ，Adjustable length

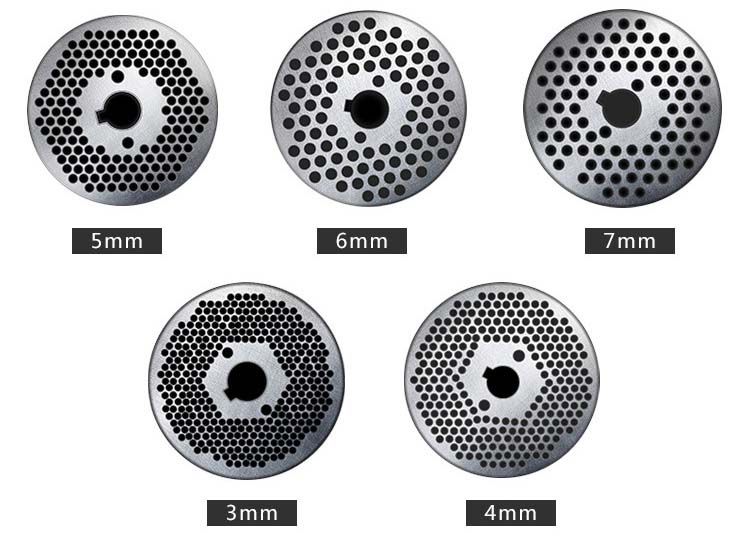

Grinding holes can be exchanged between 3-7 mm, length adjustable.
Grinding hole diameter Φ3, Φ5, Φ6, Φ7 mm can be selected, the default is Φ4 mm long and short orifice plate，Need to add other size mold plate, please contact customer service consultation, the size of the particles can be adjusted .
FAQ
1, Extra-fine 1.5 mm grinding tools are used for breeding miniature birds and aquatic animals. Such as: (shrimp, crab, small fish and other aquaculture).
2, 2.0 mm grinding tools is used for breeding: parrots, thrushes, birds and other pet birds.
3, 2.5 mm grinding tools are used for breeding: young rabbits, young chickens, ducklings, goslings, young birds, young birds, young peacocks, young aquatic fish and other small animals.
4, 3-4 mm grinding tools is used for breeding: rabbit, chicken, duck, goose, pigeon, bird, peacock, aquatic fish, etc
5, 5-6 mm grinding tools is used for breeding: pigs, cattle, samples, dogs, horses and other livestock.
